eMMC Pro Universal ISP and SDIO Solutions for repairing mobile phones - India

Description

 eMMC PRO

eMMC Pro is Universal Programmer Support ISP/ICP Connection BGA162/186/153/169/221 with eMMC Connector F

Introduction :
eMMC Pro is Universal ISP and SDIO
Solutions for repairing mobile phones .
Support ISP
Connections for repairing mobile phones .
Support page
contains an archive of repair files for the mobile phones.

eMMC PRO

Hardware Features

In-System Programming as known as ISP

It is the ability of devices to being programmed while installed in a complete system , rather than requiring the chip to be programmed prior installing or prior to being mounted .
ISP operations enables users to directly recover the complete data without removing the chip ( eMMC , eMCP, NAND ,etc.. )

Integrated Voltage Control

All (I/O) levels will be detected automatically for the eMMC / Device Levels

eMMC Pinout / Connections

D0 / DAT0 / DATA0 , CMD , CLK , VCC , VCCQ , GND
The more D/DAT/DATA pin connected the faster it will be .
Most eMMC devices are 8bit(s) ( D0,D1,D2,D3,D4,D5,D6,D7)

Support Page

Free Unlimited Technical Documents , Pinouts , Manuals Free Unlimited Mobile phone Dumps , Files resources

Low-Level Access

eMMC Pro HW and SW is able to acces the eMMC every part / partitions and zones so you won't miss a spot ! eMMC Pro is designed for Low-Level Operations and designed for Professionalsnot just a Simple Reader

eMMC PRO
Software Features

USER Area accessRead / Write / Erase / Format

BOOT 1 AccesRead / Write

BOOT 2 AccesRead / Write

extCSD AccessRead / Write

*GPP1 AccessRead / Write

*GPP2 AccessRead / Write

*GPP3 AccessRead / Write

*GPP4 AccessRead / Write

RPBMRead / Write

Direct Partition Access

Accessing the necessary partitions save time and let you accomplish the job in a short time .

Stop / Resume | Fail / Resume

There are many reasons you want to stop on-going reading or you want to continue later .
A resume is such option let you complete the previous operations in future .

Supported Devices

All rights in these trademarks, logos, and other marks are the exclusive property of their respective owners.

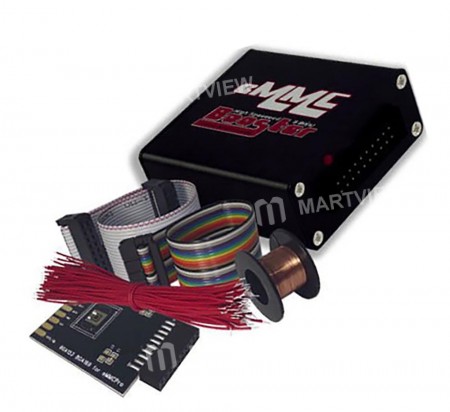

Package Contains

• 1 x eMMC Pro Box
• 1 x eMMC Booster Box
• 1 x BGA 153 PCB Break-out board
• 1 x BGA 162 / 221 PCB Break-out board
• 1 x Soldering Cables
• 1 x Thin Soldering cable roll
• 3 x 20 pin Cables

 NOTE: we dont guide you how to use it make sure you know how to use it before buying it, however you can still find solution or help from official site or at https://www.martview-forum.com/
